Razor Pocket Mod Scooter Parts

TNC Scooters carries OEM and compatible Pocket Mod replacement parts; including battery chargers, brakes, controllers, fuses, motors, switches, throttles, tires and tubes and much more!

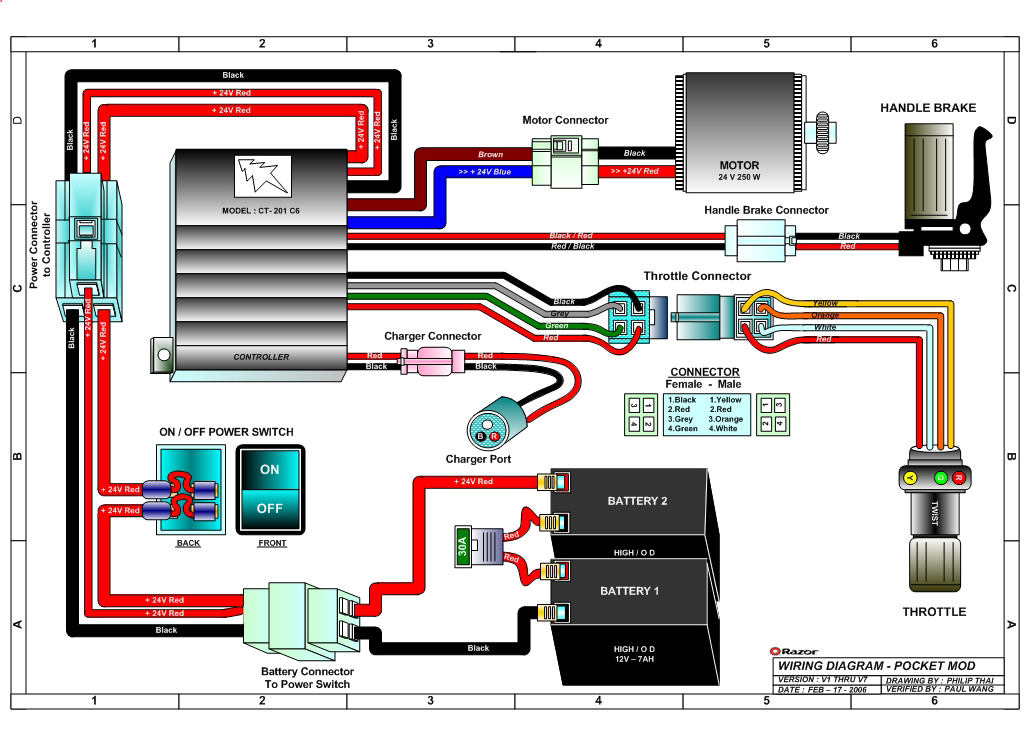

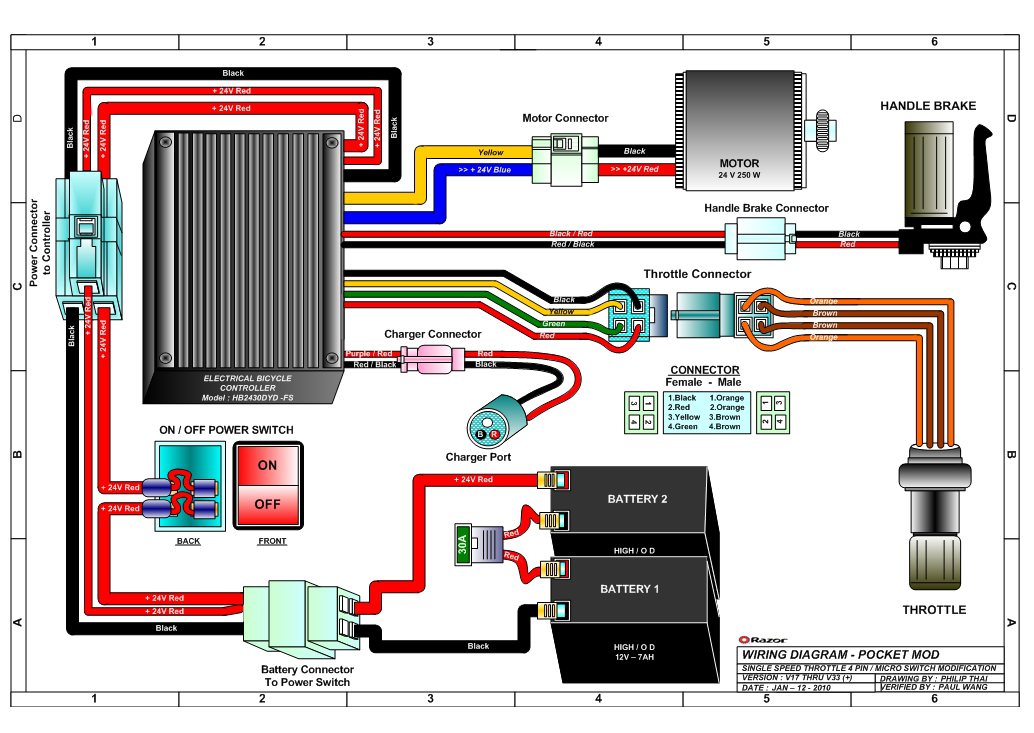

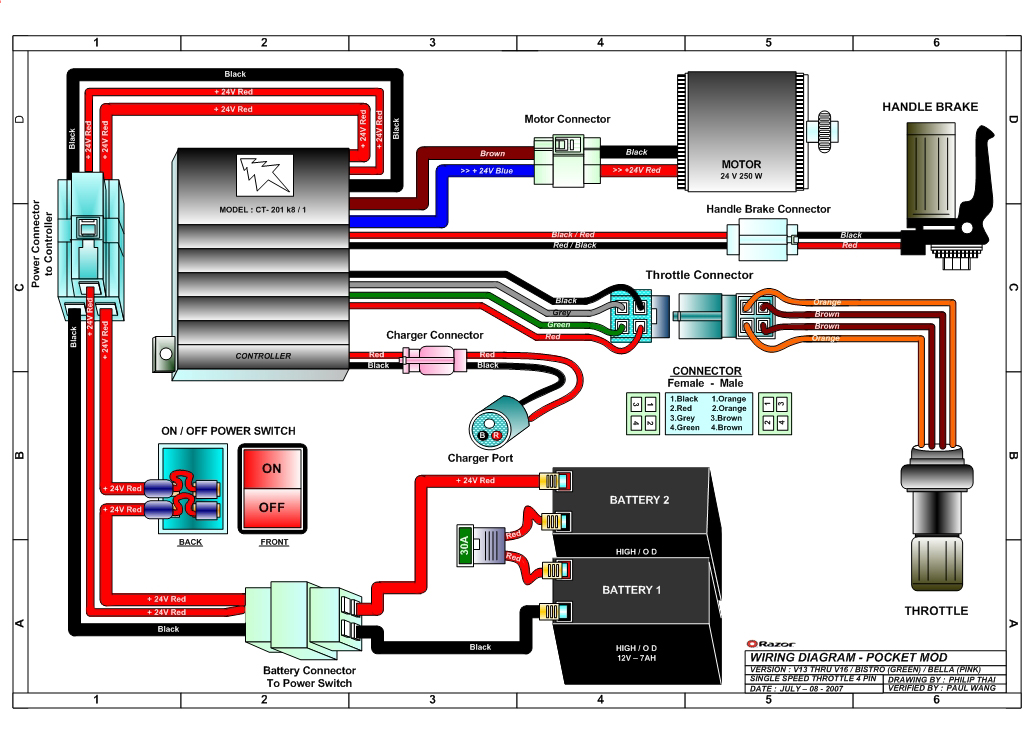

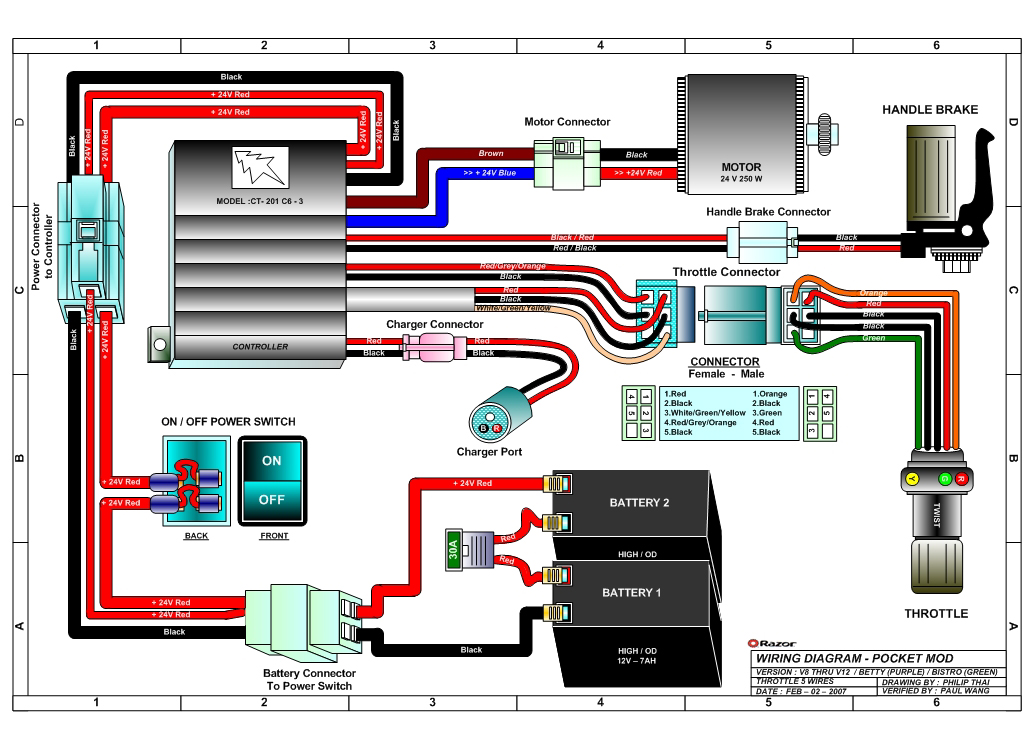

Razor Pocket Mod Downloadable Information

Some parts for this Razor scooters are version specific. The version number is located on the ID tag which can be found on the the bottom of the scooter, or on the steering tube. Below is an example of what the ID tag will look like.

The 7th and 8th numbers on the ID tag are the version number of the scooter.
For example: Version 1 = 01, Version 4 = 04, Version 11 = 11, etc.

Red On/Off Rocker Switch with Indicator Light

Part Number: SWT-102150

$8.00

24 Volt Controller (Model: CT-201C6-3)

Part Number: CTL-101176

Out of Stock

$35.00

24 Volt - 3.0 Amp XLR Battery Charger

Part Number: CHG-101134

$40.00

Razor Single Speed - Half Twist Throttle with 4-Wire Connector

Part Number: THR-101130

$20.00

INLINE Charging Port Cover

Part Number: CHG-101242

$1.00

3 Pin INLINE Plug

Part Number: CHG-101248

$2.50

12-1/2" x 2-1/4" Street Rear Wheel Assembly (3 Spoke)

Part Number: WHL-800130

Out of Stock

$38.00

24 Volt 3.0 Amp INLINE Battery Charger

Part Number: CHG-101132

$40.00

Standard Charging Port (3 Pin)

Part Number: CHG-101240

$6.00

24 Volt Controller (Model CT-201C6)

Part Number: CTL-101175

Out of Stock

$35.00

12-1/2 in. x 2-1/4 in. Tire and Tube (Street Tread)

Part Number: TIR-103130

$20.00

12-1/2" x 2-1/2" Knobby Rear Wheel Assembly (3 Spoke)

Part Number: WHL-800110

Out of Stock

$38.00

12-1/2" x 2-1/2" Knobby Front Wheel Assembly (3 Spoke)

Part Number: WHL-800100

Out of Stock

$38.00

Razor - Half Twist Throttle with 5-Wire Connector and 24 Volt LED Meter

Part Number: THR-101120

$22.00

24 Volt 1.6 Amp INLINE Battery Charger

Part Number: CHG-101130

$25.00

6001ZZ Wheel Bearings

Part Number: BRG-103220

$5.00

Brake Lever with Switch (Left Side)

Part Number: BRK-101126

$11.00

250W Motor 24 Volts (Style: MY1016)

Part Number: MOT-106100

$54.95

Half Twist Throttle Cable with 24 Volt LED Meter

Part Number: THR-101110

$20.00

12-1/2 in. x 2-1/4 in. Tube

Part Number: TIR-103140

$5.00

12-1/2 in. x 2-1/2 in. Tube

Part Number: TIR-103160

$7.50

12-1/2 in. x 2-1/2 in. Tire and Tube (Knobby Tread)

Part Number: TIR-103142

$20.00

Black On/Off Rocker Switch

Part Number: SWT-102100

$6.00

1-3/4" Front Fork Bearing Set

Part Number: BRG-104140

$12.00

Band Brake Assembly 70mm (3-1/2 inches)

Part Number: BRK-104300

$11.00

Band Brake Assembly 90mm (4-1/2 inches)

Part Number: BRK-104310

$12.00

Front Rim with Curved Spokes for 12-1/2 in. Tires

Part Number: RIM-103190

$20.00

Rear Rim with Curved Spokes for 12-1/2 in. Tires

Part Number: RIM-103200

$20.00

12-1/2" x 2-1/4" Street Front Wheel Assembly (3 - Spoke)

Part Number: WHL-800120

Out of Stock

$38.00

#25 Master Link

Part Number: CHN-105100

$1.25

12 Volt / 8 Amp Hour / 20 Hour Rated Battery (UPG)

Part Number: BAT-101208

$25.00

12 Volt / 9 Amp Hour / 20 Hour Rated Battery (UPG)

Part Number: BAT-101209

$28.00

Red On/Off Rocker Switch with Indicator Light (SWT-102150)

View

$8.00

24 Volt Controller (Model: CT-201C6-3) (CTL-101176)

View

Out of Stock

$35.00

24 Volt - 3.0 Amp XLR Battery Charger (CHG-101134)

View

$40.00

Razor Single Speed - Half Twist Throttle with 4-Wire Connector (THR-101130)

View

$20.00

INLINE Charging Port Cover (CHG-101242)

View

$1.00

3 Pin INLINE Plug (CHG-101248)

View

$2.50

12-1/2" x 2-1/4" Street Rear Wheel Assembly (3 Spoke) (WHL-800130)

View

Out of Stock

$38.00

24 Volt 3.0 Amp INLINE Battery Charger (CHG-101132)

View

$40.00

Standard Charging Port (3 Pin) (CHG-101240)

View

$6.00

24 Volt Controller (Model CT-201C6) (CTL-101175)

View

Out of Stock

$35.00

12-1/2 in. x 2-1/4 in. Tire and Tube (Street Tread) (TIR-103130)

View

$20.00

12-1/2" x 2-1/2" Knobby Rear Wheel Assembly (3 Spoke) (WHL-800110)

View

Out of Stock

$38.00

12-1/2" x 2-1/2" Knobby Front Wheel Assembly (3 Spoke) (WHL-800100)

View

Out of Stock

$38.00

Razor - Half Twist Throttle with 5-Wire Connector and 24 Volt LED Meter (THR-101120)

View

$22.00

24 Volt 1.6 Amp INLINE Battery Charger (CHG-101130)

View

$25.00

6001ZZ Wheel Bearings (BRG-103220)

View

$5.00

Brake Lever with Switch (Left Side) (BRK-101126)

View

$11.00

250W Motor 24 Volts (Style: MY1016) (MOT-106100)

View

$54.95

Half Twist Throttle Cable with 24 Volt LED Meter (THR-101110)

View

$20.00

12-1/2 in. x 2-1/4 in. Tube (TIR-103140)

View

$5.00

12-1/2 in. x 2-1/2 in. Tube (TIR-103160)

View

$7.50

12-1/2 in. x 2-1/2 in. Tire and Tube (Knobby Tread) (TIR-103142)

View

$20.00

Black On/Off Rocker Switch (SWT-102100)

View

$6.00

1-3/4" Front Fork Bearing Set (BRG-104140)

View

$12.00

Band Brake Assembly 70mm (3-1/2 inches) (BRK-104300)

View

$11.00

Band Brake Assembly 90mm (4-1/2 inches) (BRK-104310)

View

$12.00

Front Rim with Curved Spokes for 12-1/2 in. Tires (RIM-103190)

View

$20.00

Rear Rim with Curved Spokes for 12-1/2 in. Tires (RIM-103200)

View

$20.00

12-1/2" x 2-1/4" Street Front Wheel Assembly (3 - Spoke) (WHL-800120)

View

Out of Stock

$38.00

#25 Master Link (CHN-105100)

View

$1.25

12 Volt / 8 Amp Hour / 20 Hour Rated Battery (UPG) (BAT-101208)

View

$25.00

12 Volt / 9 Amp Hour / 20 Hour Rated Battery (UPG) (BAT-101209)

View

$28.00
