Razor Dirt Quad Parts

TNC Scooters carries OEM and compatible Dirt Quad replacement parts; including battery chargers, brake calipers, brake pads, controllers, fuses, motors, shocks, switches, throttles and much more!

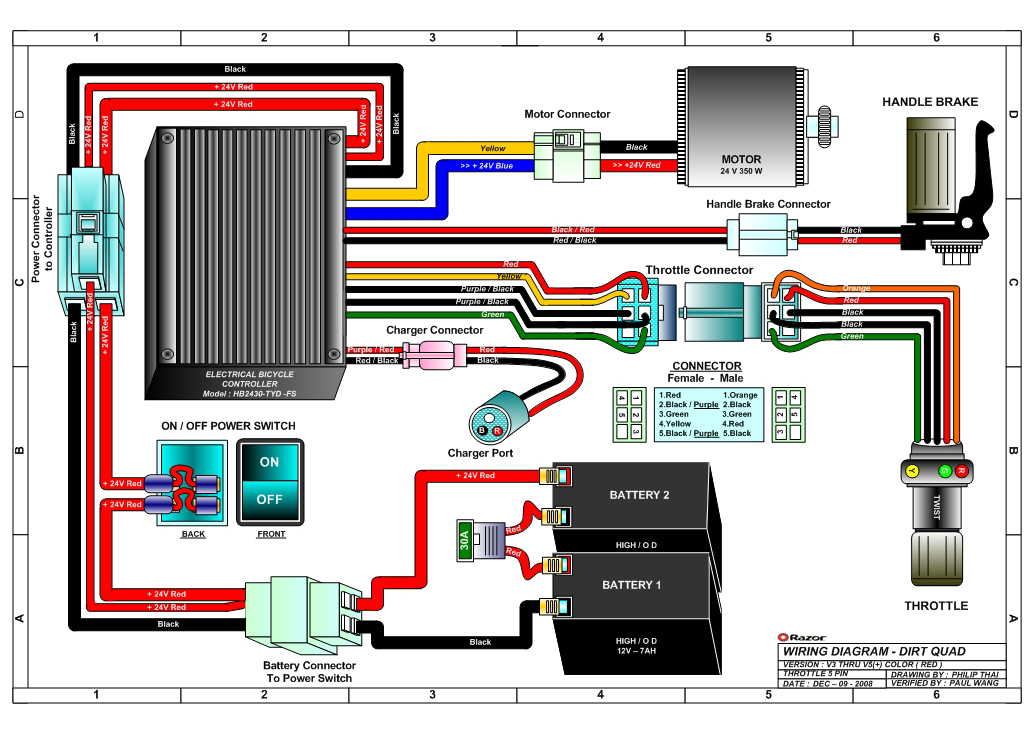

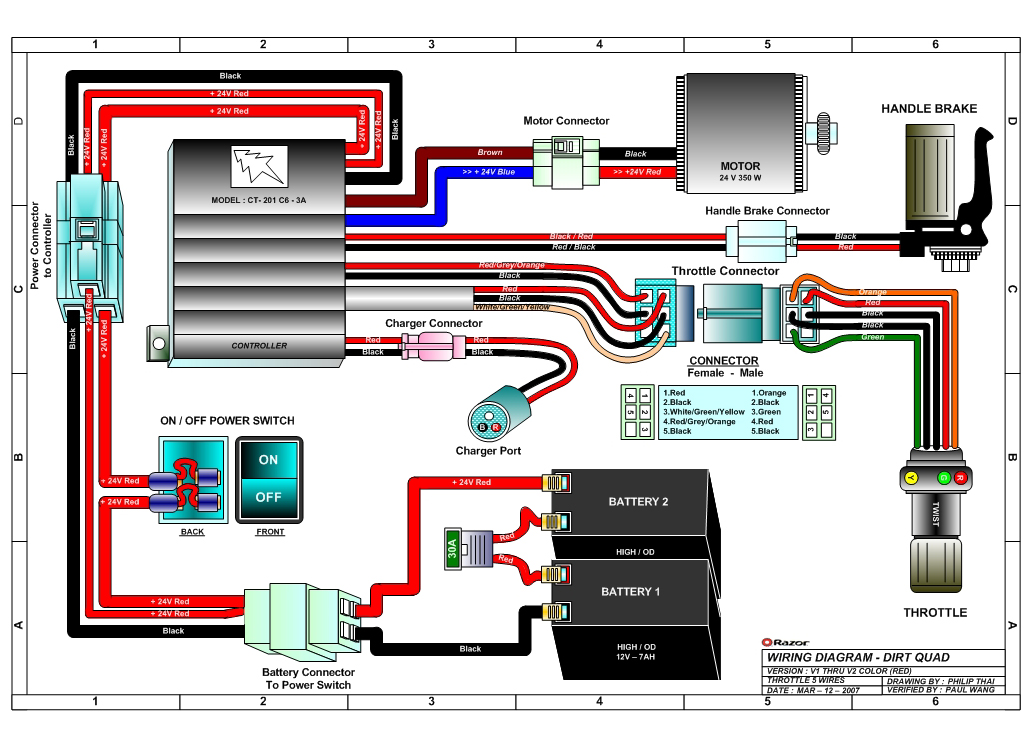

Razor Dirt Quad Downloadable Information

Some parts for this Razor scooters are version specific. The version number is located on the ID tag which can be found on the the bottom of the scooter, or on the steering tube. Below is an example of what the ID tag will look like.
The 7th and 8th numbers on the ID tag are the version number of the scooter.
For example: Version 1 = 01, Version 4 = 04, Version 11 = 11, etc.
Sort By:
Disc Brake Pads - Rounded (1 Tall and 1 Short)
Part Number: BRK-104410
$8.00
24 Volt Controller (Model: CT-201C6-3)
Part Number: CTL-101176
Out of Stock
$35.00
24 Volt - 3.0 Amp XLR Battery Charger
Part Number: CHG-101134
$40.00
INLINE Charging Port Cover
Part Number: CHG-101242
$1.00
3 Pin INLINE Plug
Part Number: CHG-101248
$2.50
24 Volt 3.0 Amp INLINE Battery Charger
Part Number: CHG-101132
$40.00
Standard Charging Port (3 Pin)
Part Number: CHG-101240
$6.00
24 Volt 1.6 Amp INLINE Battery Charger
Part Number: CHG-101130
$25.00
Razor - Half Twist Throttle with 5-Wire Connector and 24 Volt LED Meter
Part Number: THR-101120
$22.00
Red On/Off Rocker Switch with Indicator Light
Part Number: SWT-102150
$8.00
Black On/Off Rocker Switch
Part Number: SWT-102100
$6.00
8mm (T8F) Chain Sold By The Foot
Part Number: CHN-105450
$4.50
#25 Master Link
Part Number: CHN-105100
$1.25
Half Twist Throttle Cable with 24 Volt LED Meter
Part Number: THR-101110
$20.00
Brake Lever with Switch (Left Side)
Part Number: BRK-101126
Out of Stock
$11.00
12 Volt / 8 Amp Hour / 20 Hour Rated Battery (UPG)
Part Number: BAT-101208
$25.00
12 Volt / 9 Amp Hour / 20 Hour Rated Battery (UPG)
Part Number: BAT-101209
$28.00
Per Page      1 - 17 of 17
