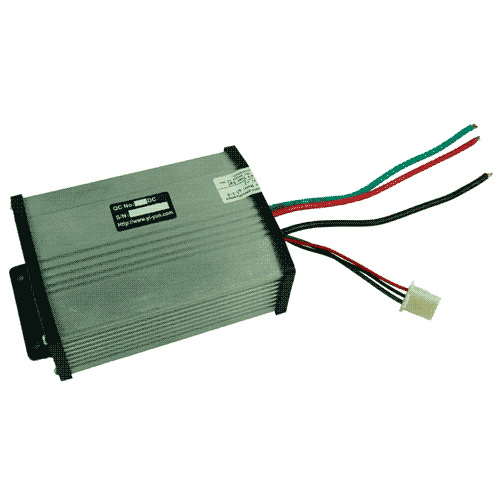

YK42-2 Controller
Product Specification 		TNC Scooters
Sales - Service - Parts

YK42-2 - Technical Parameters

Rated Voltage
24 Volts
Rated Current
40 +/- 1.0 Amps
Rated Motor
Up to 1200 Watts
Conversion Efficiency
95%
Under Voltage Protection
11 +/- 0.5 Volts
Speed Control
Hall Effect Throttle
(1 - 4 Volts)
Dimensions
12 cm x 9.0 cm x 4.6 cm



YK42-2 - Installation & Wiring

Power
Red = Positive (+)
Black - Negative (-)
 See Notes: 1, 2, 3
Motor
Red = Positive (+)
Blue = Negative (-

Throttle
See Notes: 4

Brake Lever
See Notes: 5



NOTES

    1. The red Motor and Battery wires are attached together inside of the controller so it does not matter which one goes to the Motor or Battery.
    2. When connecting the controller to the battery a spark may occur and this is normal.
    3. Make the battery connection your last connection.
    4. This controller uses a standard Hall Effect (3 - Wire) throttle.
    5. The brake lever switch connection is optional. The controller will operate with nothing attached to the brake lever switch. When the brake lever connector's black and yellow wires are contacted together the motor will turn off and then the motor will turn on again when the black and yellow wires are not contacting each other.
