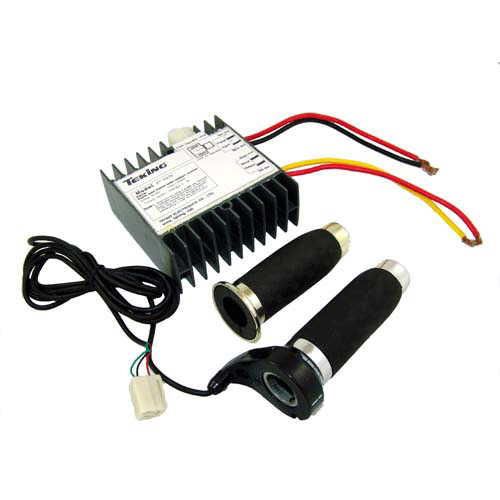

ZY-KK70 Controller
Product Specification 		TNC Scooters

ZY-KK70 - Technical Parameters

Rated Voltage
48 to 60 Volts
Rated Current
60 - 100 +/- 1.0 Amps
Rated Motor
Up to 2000 Watts
Conversion Efficency
95%
Under Voltage Protection
42.0 +/- 0.5 Volts
Speed Control
Hall Effect Throttle
(1 - 4 Volts) Included with controller.
Dimensions
105mm x 115mm x 48mm (L x W x H)



ZY-KK70 - Installation & Wiring

Battery Connector
Connector Plug:
See Notes: 1 & 2
Motor Connector
Connector Plug:

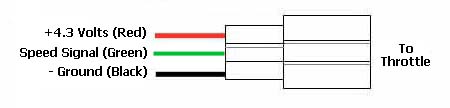

Throttle Connector
Connector Plug:



NOTES

    1. Make your battery connection your last connection.
    2. When connecting the controller to the battery a spark may occur this is normal.
