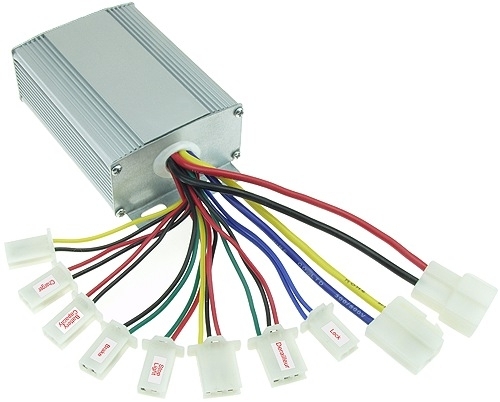

CTL-101185 Controller
Product Specification 		TNC Scooters
Sales - Service - Parts

CTL-101185 - Technical Parameters

Rated Voltage
24 Volts
Rated Motor
Up To 500 Watts
Rated Current
30 Amps
Conversion Efficiency
95%
Under Voltage Protection
20.5 Volts
Dimensions
9.8 cm x 6.9 cm x 3.8 cm



CTL-101185 - Installation & Wiring

Power Connector
Connector Plug: DJ7022-6.3-11

See Note 1
Motor Connector
Connector Plug: DJ7022-6.3-21
Power Switch Connector
Connector Plug: DJ7021A-2.8-21
Throttle Connector
Red = + 5 Volts Output
Black = Negative
Green = + 1-4 Volts Input
 Connector Plug: DJ7021A-2.8-31


Reverse Switch Connector
Connector Plug: DJ7021A-2.8-21

Speed Switch Connector
All Wires Disconnected = High
Black & Yellow Connected = Medium
Black & Red Connected = Low
Connector Plug: DJ7021A-2.8-31


Charger Connector
Connector Plug: DJ7021A-2.8-21
Brake Switch Connector
Connector Plug: DJ7021A-2.8-21
Power Light Connector (24VDC)
Connector Plug: DJ7021A-2.8-21
Brake Light Connector (24VDC)
Connector Plug: DJ7021A-2.8-21



NOTES


1. Make the Battery connector your last connection.
