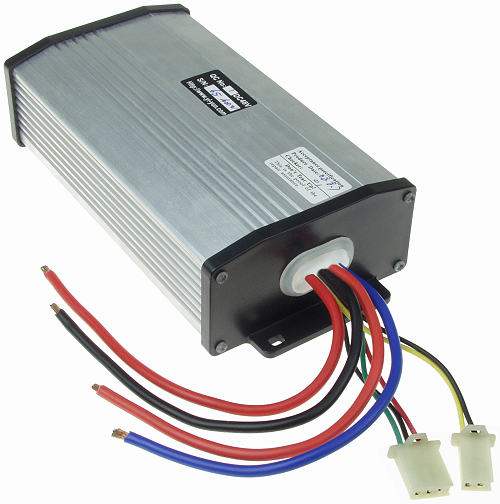

YK42-4 Controller
Product Specification
|
TNC Scooters
Sales - Service - Parts
|
|
|
YK42-4 - Technical Parameters
Rated Voltage
|
48 Volts
|
Rated Current
|
40 +/- 1.0 Amps
|
Rated Motor
|
Up to 1200 Watts
|
Conversion Efficiency
|
95%
|
Under Voltage Protection
|
42 +/- 0.5 Volts
|
Speed Control
|
Hall Effect Throttle
(1 - 4 Volts)
|
Dimensions
|
17 cm x 9.0 cm x 4.6 cm
|
|
YK42-4 - Installation & Wiring
Power
Red = Positive (+)
Black - Negative (-)
See Notes: 1, 2, 3
|
|
Motor
Red = Positive (+)
Blue = Negative (-
|
|
Throttle
See Notes: 4 |
|
Brake Lever
See Notes: 5 |
|
|
NOTES
1. The red Motor and Battery wires are attached
together inside of the controller so it does not
matter which one goes to the Motor or Battery.
2. When connecting the controller to the battery a spark may occur
and this is normal.
3. Make the battery connection your last connection.
4. This controller uses a standard Hall Effect (3 - Wire) throttle.
5. The brake lever switch connection is optional.
The controller will operate with nothing attached to
the brake lever switch. When the brake lever
connector's black and yellow wires are contacted
together the motor will turn off and then the motor
will turn on again when the black and yellow wires
are not contacting each other.
|
|
