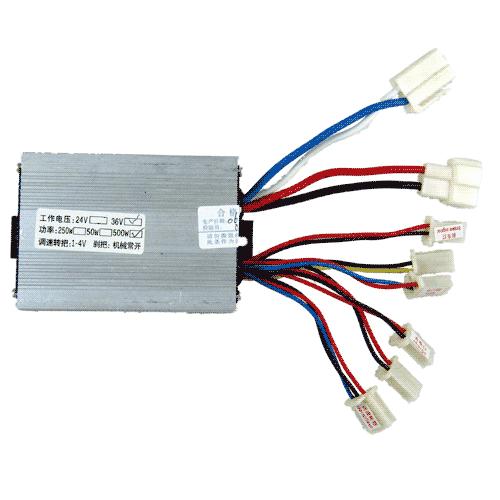

YK40-3 Controller Product Specification |
TNC Scooters |
YK40-3 - Technical Parameters
|
Rated Voltage
|
36 Volts
|
|---|---|
|
Rated Motor
|
Up To 500 Watts
|
|
Rated Current
|
30 Amps
|
|
Conversion Efficency
|
95%
|
|
Under Voltage Protection
|
30.5 Volts
|
|
Dimensions
|
9.8 cm x 6.9 cm x 3.8 cm
|
YK40-3 - Installation & Wiring
|
Power Connector
Connector Plug: DJ7022-6.3-11 See Note 1 |
|
|---|---|
|
Motor Connector
Connector Plug: DJ7022-6.3-21 |
|
|
Lock Connector
Connector Plug: DJ7021A-2.8-31 |
|
|
Derailleur
Connector Plug: DJ7021A-2.8-31 |
|
|
Charger Connector
Connector Plug: DJ7021A-2.8-21 |
|
|
Brake Signal Connector
Connector Plug: DJ7021A-2.8-21 |
|
|
Pilot Light Connector
Connector Plug: DJ7021A-2.8-21 |
|
|
Brake Connector
Connector Plug: DJ7021A-2.8-21 |
|
NOTES
|
1. Make the Battery connector your last connection. |
