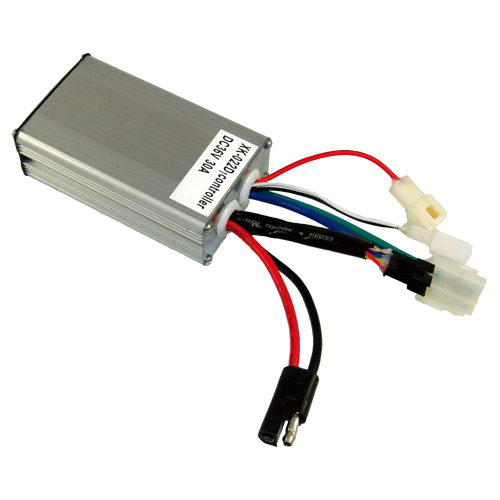

XK-022D 6-Pin Controller Product Specification |
TNC Scooters |
XK-022D 6-Pin - Technical Parameters
|
Rated Voltage
|
36 Volts
|
|---|---|
|
Rated Current
|
30 Amps
|
|
Rated Motor
|
&le 1000 Watts
|
|
Under Voltage Protection
|
31.0 Volts +/- 0.5 Volts
|
XK-022D 6-Pin - Protection Circuits
|
Under Voltage Protection
|
When battery voltage falls to a specified
value, the controller cuts off battery output preventing over discharge and extending battery life. (The cutoff value is approximately 31.0 volts +/- 0.5 volts.) |
|---|---|
|
Power Cut Off During Braking
|
When underway the brake switch signals the
controller to cut the battery output. |
XK-022D 6-Pin Installation & Wiring
|
Power Connector
|
|
|---|---|
|
Motor Connector
Connector Plug: DJ7022-6.3-21 |
|
|

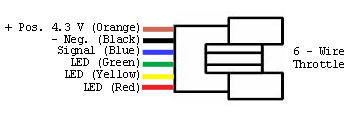

Throttle Connector
|
|
|
Charge Inhibitor Connector
|
|
|
Brake Lever Connector
Connector Plug: DJ7031A-2.8-21 |
|
NOTES
