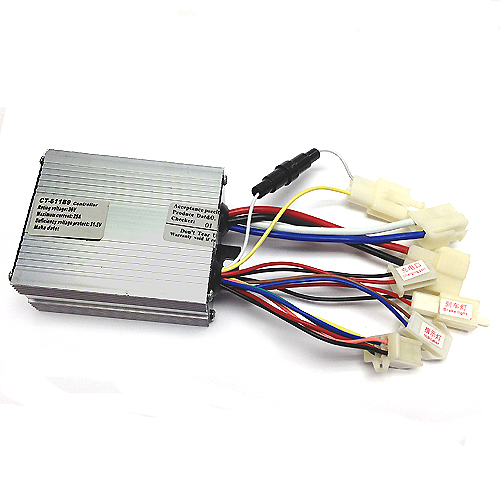

CT-611B9 Controller Product Specification |
TNC Scooters Sales - Service - Parts |
CT-611B9 - Technical Parameters
|
Rated Voltage
|
36 Volts
|
|---|---|
|
Rated Current
|
25 Amps
|
|
Rated Motor
|
≤ 500 Watts
|
|
Rated Charger
|
≤ 3.0 Amps
|
|
Conversion Efficency
|
95%
|
|
Under Voltage Protection
|
30.5± 0.5 Volts
|
|
Dimensions
|
95 mm x 76 mm x 38 mm
|
CT-611B9 - Protection Circuits
|
Current Limiting
|
This prevents the motor current from exceeding the specified value
avoiding damage to the motor and the controller due to over current conditions.
|
|---|---|
|
Under Voltage Protection
|
When battery voltage falls to a specified value, the controller cuts off
battery output preventing over discharge and extending battery life.
(The cutoff value is approximately 30.5± 0.5 volts, but varies drastically from controller to controller.) |
|
Power Cut Off During Braking
|
When underway the brake switch signals the controller to cut the battery output.
|
CT-611B9 - Installation & Wiring
|
Battery Connector
Connector Plug: DJ7022-6.3-11 See NOTES: |
.jpg)
|
|---|---|
|
Motor Connector
Connector Plug: DJ7022-6.3-21 |
|
|

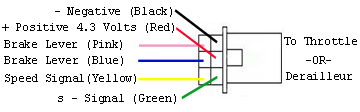

Six Wire Connector
Connector Plug: DJ7061A-2.8-21 |
.jpg)
|
|
Lock Connector
Connector Plug: DJ7031A-2.8-11 |
.jpg)
|
|
Power Indicator
Connector Plug: EL-2P Male Plug |
|
|
Charger Connector
Connector Plug: DJ7031A-2.8-21 |
|
|
Brake Light Connector
Connector Plug: DJ7021A-2.8-11 |
|
NOTES
|
|
