Rated Voltage

24 Volts

Rated Current

10.5 Amps

Rated Motor

≤ 250 Watts

Rated Charger

≤ 3.0 Amps

Conversion Efficency

95%

Under Voltage Protection

20.5 Volts

Speed Control

Available
(Turn or Thumb Throttle)

Brake Indicator

Available

Power Indicator

Available

Dimensions

88 mm x 50 mm x 35 mm

Current Limiting

This prevents the motor current from
exceeding the specified value avoiding
damage to the motor and the controller
due to over current conditions.

Under Voltage Protection

When battery voltage falls to a specified
value, the controller cuts off battery output
preventing over discharge and extending
battery life. (The cutoff value is
approximately 20.5 volts, but varies
drastically from controller to controller.)

Over Speed Prevention While Charging

When charging, the controller renders the
throttle temporarily inoperable, preventing
mistaken manipulation. (This function is
not available in some applications.)

Power Cut Off During Braking

When underway the brake switch signals the
controller to cut the battery output.

Power Connector
Connector Plug: DJ7022-6.3-11
See NOTES:

Motor Connector
Connector Plug: DJ7022-6.3-21

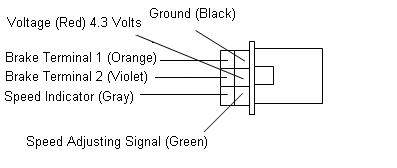

Six Wire Connector
Connector Plug: DJ7061A-2.8-21

NOTE: Found on older versions of the CT-302S9 controller. Replaced by Throttle Connector and Brake Lever / Speed Display Connector.

Throttle Connector
Connector Plug: DJ7061A-2.8-31

NOTE: Found on newer versions of the CT-302S9 controller. Replaces Six Wire Connector.

Brake Lever &
Speed Display Connector
Connector Plug: DJ7061A-2.8-31

NOTE: Found on newer versions of CT-302S9 controller. Replaces Six Wire Connector.

Lock Connector
Connector Plug: DJ7031A-2.8-11

Power Indicator
Connector Plug: EL-2P Male Plug

Charger Connector
Connector Plug: DJ7031A-2.8-21

Brake Connector
Connector Plug: DJ7021A-2.8-11
