CT-201C6-3 Controller
Product Specification
|
TNC Scooters
Sales - Service - Parts
|
|

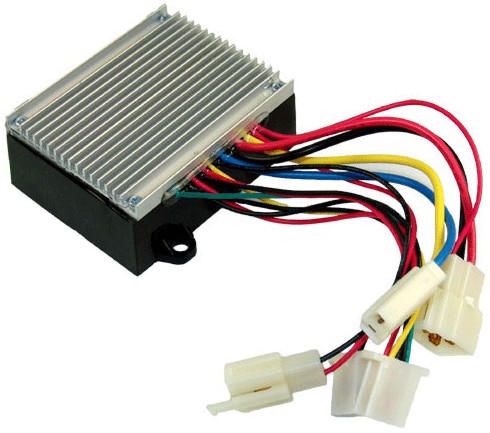

The version of this controller shown in the
photograph was discontinued and replaced by a new
version that has a different style case. The newer
version of this controller has the exact same wires,
connectors, and specifications as the old version. |
|
CT-201C6-3 - Technical Parameters
Rated Voltage
|
24 Volts
|
Max Current
|
30 Amps
|
Rated Motor
|
≤ 500 Watts
|
Rated Charger
|
≤ 3.0 Amps
|
Conversion Efficency
|
95%
|
Under Voltage Protection
|
20.5 Volts
|
Speed Control
|
Twist or Thumb Throttle
(Hall Effect)
|
Dimensions
|
88 mm x 62 mm x 35 mm
|
|
CT-201C6-3 - Protection Circuits
Current Limiting
|
This prevents the motor current from
exceeding the specified value avoiding
damage to the motor and the controller
due to over current conditions.
|
Under Voltage Protection
|
When battery voltage falls to a specified
value, the controller cuts off battery output
preventing over discharge and extending
battery life. (The cutoff value is
approximately 20.5 volts, but varies
drastically from controller to controller.)
|
Over Speed Prevention While
Charging
|
When charging, the controller renders the
throttle temporarily inoperable, preventing
mistaken manipulation. (This function is
not available in some applications.)
|
Power Cut Off During Braking
|
When underway the brake switch signals the
controller to cut the battery output.
|
|
CT-201C6-3 - Installation & Wiring
Power Connector
Connector Plug: DJ7022-6.3-11
See Notes: 1
|
|
Motor Connector
Connector Plug: DJ7022-6.3-21
|
|

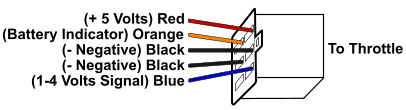

Throttle
-or-
Derailleur Connector
Connector Plug:
DJ7041A-2.8-21
|
|
Charger Connector
Connector Plug:
DJ7031A-2.8-21
|
|
Brake Connector
Connector Plug:
DJ7021A-2.8-11
|
|
|
NOTES
1. Make the Power Connector your last connection
when installing.
|
|
